TouchCPLib  1.0.0
A touch-enabled GUI interface based on SDL and libTS. It provides a simple desktop-free UI for your embedded Raspberry projects.
Public Member Functions | List of all members
GraphicsObject Class Referenceabstract

A simple interface for all the graphic objects that are supposed to be drawn. More...

#include <GraphicsObject.h>

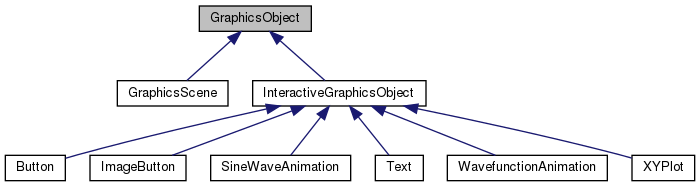

Inheritance diagram for GraphicsObject:
Inheritance graph
[legend]

Public Member Functions

virtual ~GraphicsObject ()=default

virtual void draw (uint32_t time)=0
 The draw method. It will be called once per frame for each object in a scene. More...

bool isVisible () const

void setVisibility (bool visible)


Detailed Description

A simple interface for all the graphic objects that are supposed to be drawn.

Constructor & Destructor Documentation

◆ ~GraphicsObject()

virtual GraphicsObject::~GraphicsObject ( )
virtualdefault

Member Function Documentation

◆ draw()

virtual void GraphicsObject::draw ( uint32_t  time)
pure virtual

The draw method. It will be called once per frame for each object in a scene.

Parameters
timeA time parameter (as given by SDL_GetTicks) for time-based animation purposes

Implemented in GraphicsScene, XYPlot, Button, Text, ImageButton, WavefunctionAnimation, and SineWaveAnimation.

◆ isVisible()

bool GraphicsObject::isVisible ( ) const
inline

◆ setVisibility()

void GraphicsObject::setVisibility ( bool  visible)
inline
The documentation for this class was generated from the following file:
